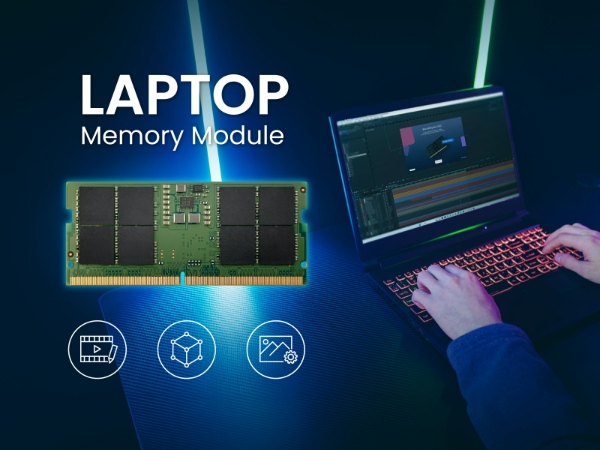

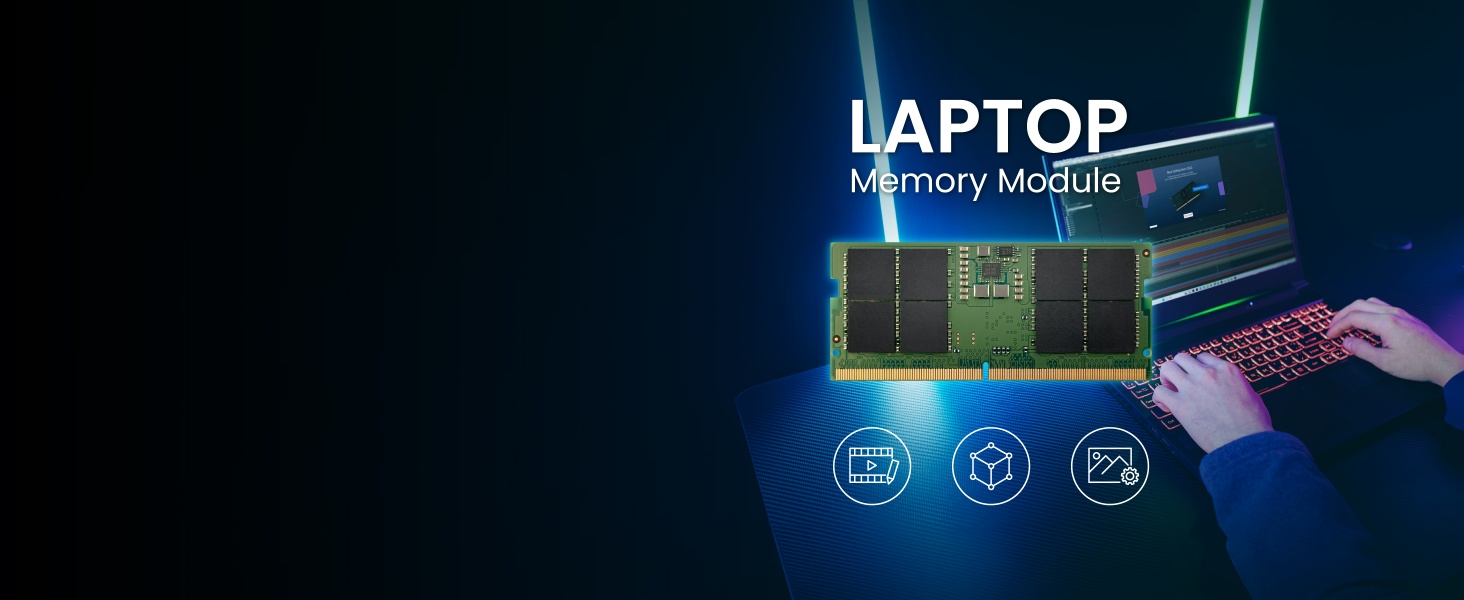

Unleash Your Creativity
MD-5S DDR5 boosts your laptop’s performance, making video editing and graphic design faster and smoother.
Unleash Your Creativity
MD-5S DDR5 boosts your laptop’s performance, making video editing and graphic design faster and smoother.
Explore Infinite Possibilities
Handle more tasks with larger RAM for smoother multitasking and better big data performance.
Explore Infinite Possibilities
Handle more tasks with larger RAM for smoother multitasking and better big data performance.

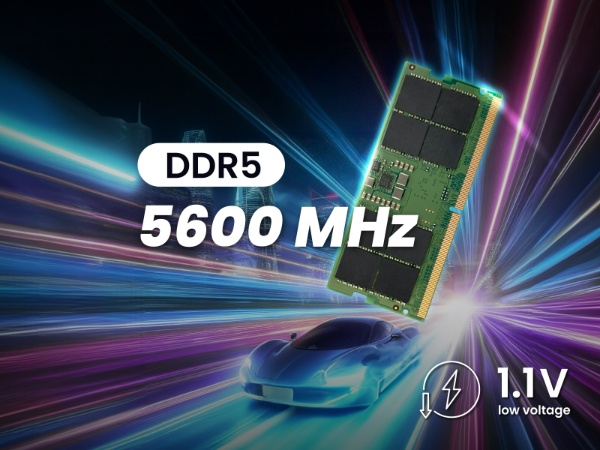

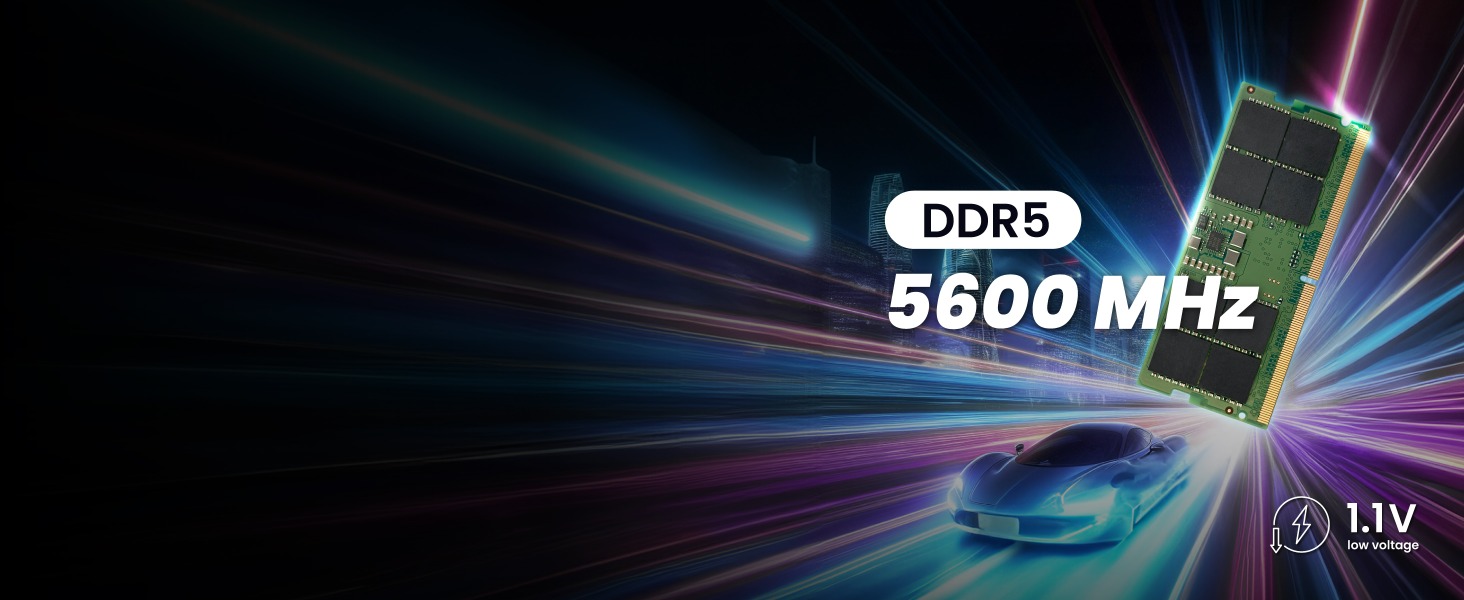

Higher Speed
MD-5S DDR5 brings you blazing speeds of up to 5600MHz, ensuring faster read and write times and lower latency for smooth, efficient performance.
Higher Speed
MD-5S DDR5 brings you blazing speeds of up to 5600MHz, ensuring faster read and write times and lower latency for smooth, efficient performance.

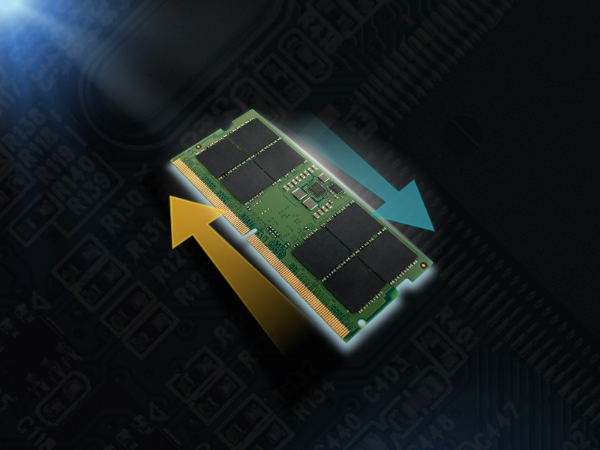

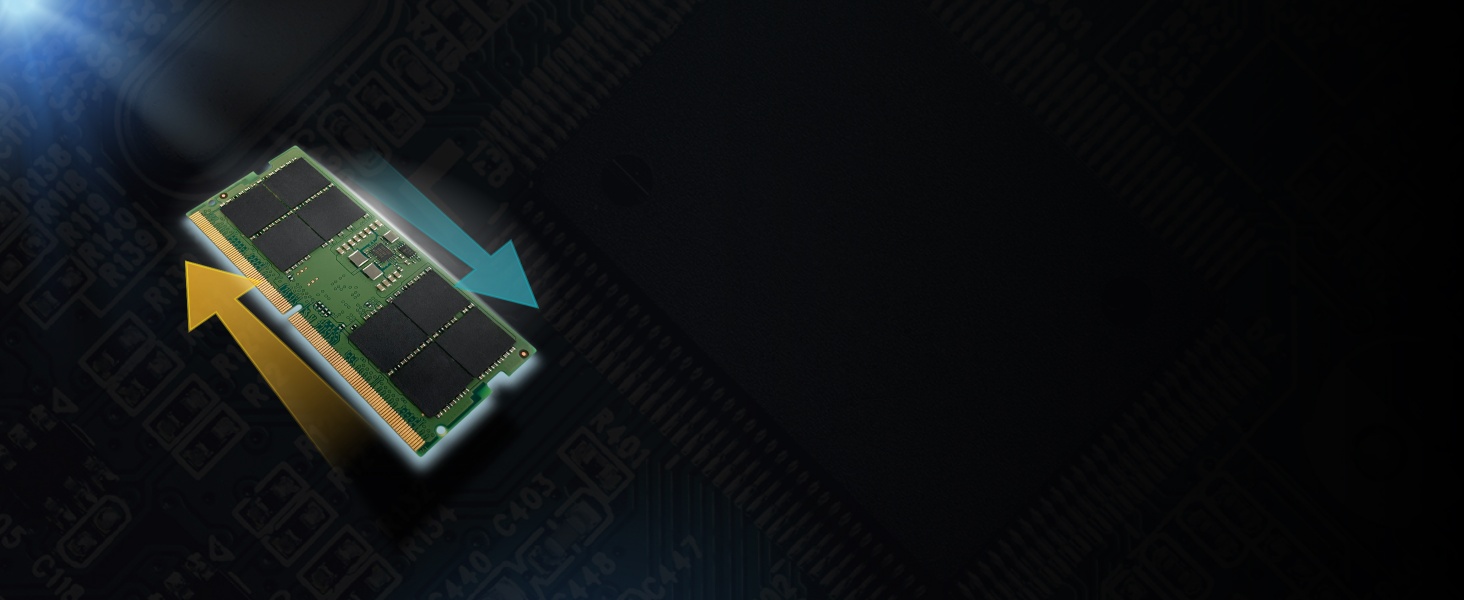

Get Better Performance
DDR5 modules offer two sub-channels, boosting data accesses speed and efficiency.
Get Better Performance
DDR5 modules offer two sub-channels, boosting data accesses speed and efficiency.
Power Management IC
Via PMIC(Power Management IC), it controls power more effectively, ensuring stable voltage.
Power Management IC
Via PMIC(Power Management IC), it controls power more effectively, ensuring stable voltage.

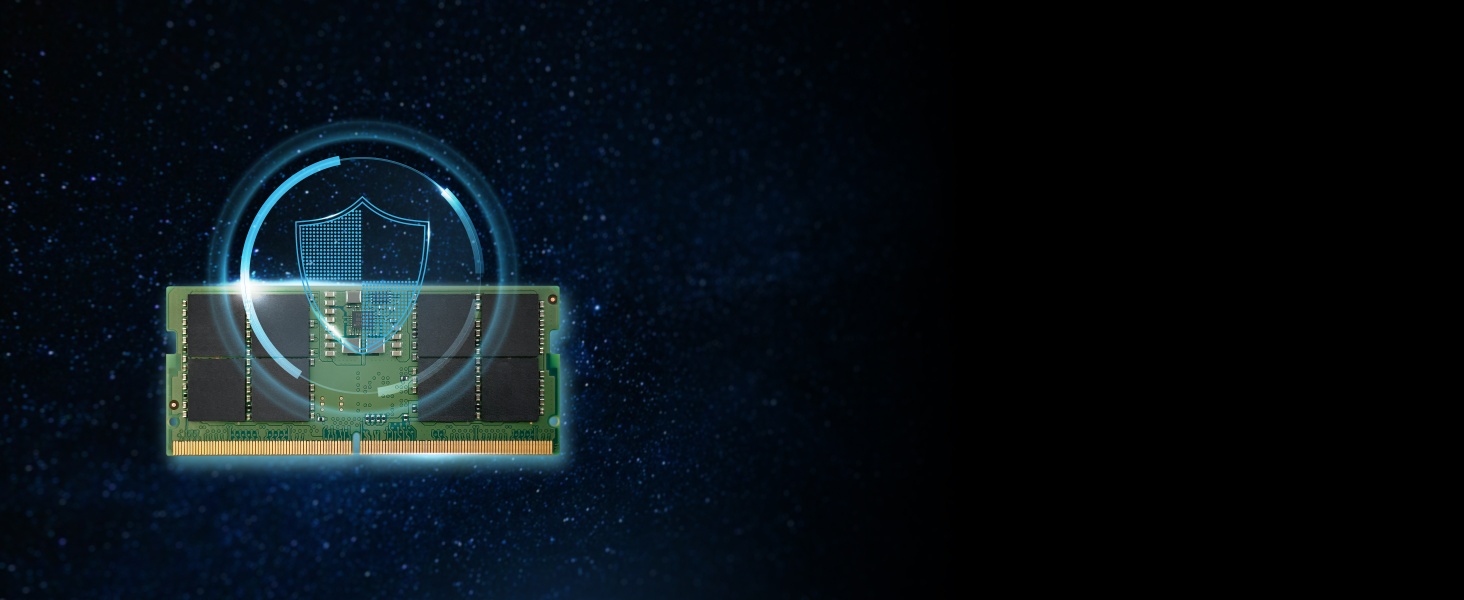

On-Die ECC
Automatically corrects bit errors on the chip, improving system data stability.
On-Die ECC
Automatically corrects bit errors on the chip, improving system data stability.
● Actual performance may vary depending on the motherboard BIOS version, host device, and system configuration.
● Before purchase, ensure your device supports the required memory type, capacity, and speed.
● For appearance and color, please refer to the actual product.
● We reserve the right to modify specifications without prior notice.

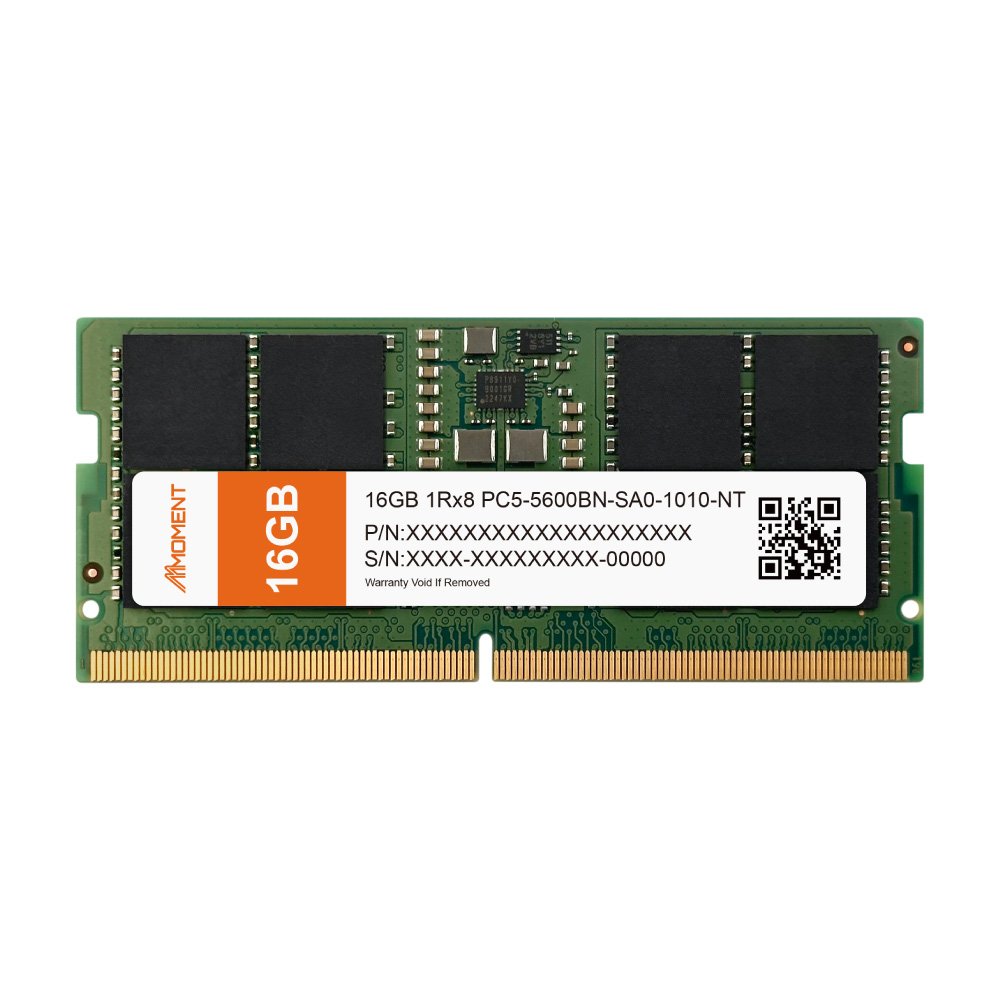

Interface
DDR5
Module spec
SODIMM
Storage Capacity
16GB, 32GB
Frequency Speed
5600MHz
CAS Latency
46
Voltage
1.1V
Operating Temperature
0° – 85° C
Product Dimensions
70mm(L)*31mm (W)*2.8mm(H)
System Compatibility
Windows : 7 / 8.1 / 10 / 11
Linux : Linux kernel 2.4 and later version
MAC OS : Mac OS X 10.8 and later version
Linux : Linux kernel 2.4 and later version
MAC OS : Mac OS X 10.8 and later version
Warranty
5 years from the date of purchase
1.【DRAM】How do I check if my RAM is bad?+
Use these tools to test RAM:
- Windows Memory Diagnostic (built-in)
- Search “Windows Memory Diagnostic” in Start → click “Restart now and check for problems”
MemTest86 (advanced)
- Download from https://www.memtest86.com/
- Create a bootable USB drive ➡︎ run a full test
⚠️ Tip: Test one RAM stick at a time to isolate issues more easily.
2.【DRAM】What are RAM “gold fingers”?+
“Gold fingers” are the shiny contact pins at the bottom of your RAM stick.
They connect your RAM to the motherboard for power and data transfer.
----------------------------------------------------------------------------------------------
⚠️ Tips:
- Avoid touching them—oil and static can cause problems.
- Clean gently with an eraser if they look dirty or oxidized.
- Damaged pins may cause boot failure.
3.【DRAM】What is dual-channel RAM? How do I enable it?+
Dual-channel lets two RAM sticks work together for faster performance.
To enable it:
- Use two identical sticks (same size, speed, brand is best)
- Install them in the correct slots (usually color-coded on your motherboard)
4.【DRAM】What is RAM CL or CAS Latency? Is a lower number better?+
CL (CAS Latency) = the delay between your CPU asking for data and the RAM delivering it.
- A lower CL is better, but only when paired with a high MHz speed.
- Performance depends on both speed and latency.
5.【DRAM】Can I use RAM from different brands or sizes together?+
Technically yes, but it’s not recommended.
- Mismatched RAM may cause crashes, slower performance, or failure to boot.
- For best stability, use the same brand, size, and speed in all slots.
6.【DRAM】How do I install RAM correctly? (RAM installation guide)+
【1】Shut down and unplug the power: This prevents static damage.
【2】Line up the notch: RAM sticks have a notch—make sure it aligns with the slot.
【3】Press down firmly: Push straight down until both side clips snap into place.
【4】Don’t touch the gold contacts: These are called “gold fingers.” Keep them clean. Use an eraser to gently clean if dirty.
7.【DRAM】Can I mix DDR3, DDR4, and DDR5 RAM?+
No. Each type of RAM (DDR3, DDR4, DDR5) has different pin layouts and notch positions. They’re not physically compatible.
- Mixing types is not possible.
- For safety, never force RAM into the wrong slot—it can damage your motherboard or RAM.
⚠️Check compatibility: Search your device model online to see what RAM it supports.
8.【DRAM】Why is my RAM not running at standard speed ?+
The speed shown on the packaging represents the maximum frequency the memory can achieve on a compatible standard test platform.
In everyday use, the actual speed may vary due to factors such as the motherboard, processor, and system settings.
9.【DRAM】Why is only 8GB of my 16GB RAM usable?+
📍Check what’s detected
-
Press
Ctrl + Shift + Esc→ go to Performance > Memory → compare “Installed” and “Available” RAM.
📍Common causes
-
Shared with graphics: If you don’t have a GPU, 1–2GB may be used by integrated graphics.
-
Outdated BIOS: Update from your motherboard brand’s website.
-
Windows limit: Type
msconfig→ Boot > Advanced Options → uncheck “Maximum memory.” -
Motherboard limit: Check your board’s max RAM per slot and total support.
-
Loose or faulty RAM: Reseat and test one stick at a time.
10.【DRAM】Why won’t my PC boot after I installed RAM? Why is it beeping?+
This usually means the RAM isn't seated properly or is incompatible. Try these steps:
- Reinstall the RAM: Power off, unplug, and firmly reseat the RAM until the clips click.
- Test one stick at a time: Check each stick individually to find a faulty one.
- Check compatibility: Make sure the RAM type and speed match your motherboard.
- Clear CMOS: Reset BIOS by removing the battery for 1 minute, then reinstall.
- Update BIOS: Visit your motherboard brand’s website for the latest update.
